Thermal Power Plant Block Diagram | Thermal Power Generation Station or Steam Power Plant :

A generating station which converts heat energy of coal combustion into electrical energy is known as a steam power station.

1. Selection of site for steam power stations:

     (a) The site should be nearest to the coal mines so that Transport cost of fuel is minimum.

     (b) Large quantity of cooling  (for the condenser) water should be available.

     (c) The land should not be rocky and marshy.

     (d) The chimney of the plant, do not obstruct the flying aero planes, i.e., the site should be away               from the airport.

     (e) The site should not be surrounded by residential building to avoid nuisance of smoke, noise                 etc.

      (f) If the station is located, near the load center, the distribution cost reduces.

      (g) Facility for the disposal of ash.

2.  Schematic Arrangement of Steam Power Stations:

3. The main and auxiliary equipment in a thermal power plant are :

      (a) Coal and ash handling plant.

      (b) Steam generator or Boiler.

      (c) Super heater.

      (d) Economizer.

      (e) Airpreheater.

      (f) Steam Turbine.

      (g) Condenser.

      (h) Cooling towers.

      (i ) Feed water heater.

      (j ) A. C. Generator (or) Alternator.

      (k) Exciter.

      (l ) Electro static precipitator.

(a) Coal and ash handling plant:

      The coal is transported to the power station by road 'or' rail and is stored in the coal storage plant.        The coal is delivered to the coal handling plant. Where it is pulverized (i.e.,crushed into small              pieces) in order to increase its surface exposure. Thus promoting rapid combustion without                  using large quantity of excess air. The pulverized coal is fed to the boiler by belt conveyors.

 Advantages of coal pulverization:

 1.  Gives more surface area for a given mass of coal.

 2.  Fast combustion as more area is exposed to heat and oxygen.

 3.  Boiler can be started quickly.

 4.  Fast response to load changes.

      The coal is burnt in the boiler and the ash produced after the complete combustion of coal is                removed to the ash handling plant and the delivered to the ash storage plant for disposal. Indian          coal has ash content of 20% to 40%. In thermal power plant bituminous coal is used because, it          has low ash content.

Eg: semi-bituminous coal is more preferable.

(b) Steam Generator (or) Boiler:

      Boiler is a device. Where in water is converted into steam by utilizing the heat of combustion

      The is two types:

      (i) Water tube boiler        (ii) Fire tube boiler

                                            Image credits : www.green-mechanic.com



      (i) Water tube boiler:

           The water flows through the tubes and hot combustion gases flow over these tube, water tube               boiler are used universally for such plant.

   Features of water tube boiler.

    i)    Method of water circulation

    ii)   Improved method of heating

    iii)  Easy removal of scale from inside the tube

      (ii) Fire Tube Boiler:

            The hot combustion gases flow through the tube. Water is surrounded by the fire tube.

   (c) Super Heater:

         A super heater is a device which raises the temperature of the steam much above the boiling                 point of water. Super heater heat is taken from flue gases. Normal radiant type of heat transfer             method is used. It is placed between boiler and turbine. It is improved efficiency of plant.

     The use of Super heater:

     (a) Reduce the steam consumption per given output.

     (b) Reduce the condensation loss.

     (c) Elimination the erosion of steam turbine blades due to the absence of moisture.

     (d) Improves the overall efficiency.

   (d) Economizer:

         Economizer mainly consists of closely spaced parallel tubes through which feed water on its               way to boiler flows and the fuel gases flows outsides the tubes. Some of the heat energy of the             fuel gases is recovered by heating the feed water hear saturation but, not converted into steam             this results saving in fuel (10-25%) and raising boiler efficiency.

    (e) Air preheater:

          An Airpreheater increases the temperature of the air supplied for coal burning by deriving heat            from fuel gases. Air is drawn from the atmosphere. By a forced draught fan and is passed                    through air preheated before supplying to the boiler furnace. Air pre heaters are placed in                    between economizer and chimney. The efficiency of boiler is increased.

    (f)  Steam Turbine:

          A steam turbine may be defined as a rotating machine, which converts the energy contained in            steam into mechanical energy or rotary energy.

          Basically there are two types of Turbines

          i)   Impulse Turbine

          ii)  Reaction turbine

          iii) Impulse Reaction Turbine (this turbine is a combination of impulse and reaction turbines)

    (i)  Impulse Turbine:

          The steam expands completely in the stationary nozzles (or fixed blades), the pressure over the            moving blades remaining constant, so the steam attains a high velocity and impinges against                the moving blades this results in the impulsive force on the moving blades which sets the rotor            rotating.

    (ii) Reaction turbine:

          The steam is partially expanded in the stationary nozzles, the remaining expansion takes place            during its flow over the moving blades, and the result is that the momentum of the steam                      causes a reaction force on the moving blades which sets the rotor in motion.

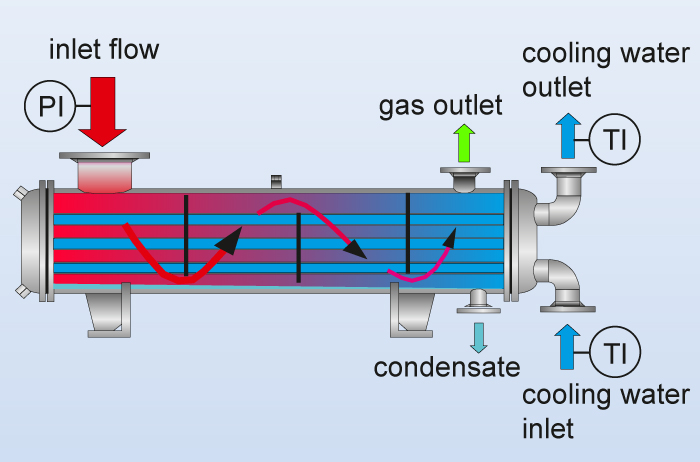

    (g) Condenser:

          A condenser is a device which condenses the steam at the exhaust of Turbine. It serves two                  important functions. (1) It creates a very low pressure at the exhaust of turbine, thus permitting            expansion of the steam in the prime mover to a very low pressure. This helps in converting                  heat energy of steam into Mechanical energy in the prime mover. (2) The condensed steam can            be used as feed water to the boiler. It is improves power plant efficiency.

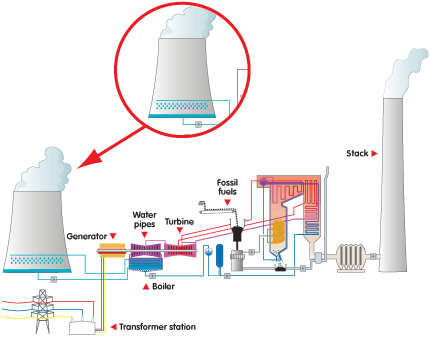

    (h)  Cooling Towers:

           A condenser is a device in which exhaust steam from steam turbine is condenser and the heat               energy given by the steam during condensation is taken up by the cooling tower.

           Different types of cooling Towers are:

           1. Natural draught cooling towers

           2. Forced draught cooling towers

           3. Induced draught cooling towers

     (i)  Feed Water Heater:

           The steam coming out of the turbine is condensed and the condensate is fed bock to the boiler             as feed water.

           It is necessary to heat the feed water before feeding it to the boiler for the following                     reasons:

           1. Feed water heating improved the overall efficiency of the plant.

           2. The dissolved oxygen and carbon dioxide are removed in the feed water heater.

           3. The quantity of steam produced by the boiler is increased.

           4. Thermal stresses due to cold water entering the boiler are eliminated.

      (j) Generator:

•  Each alternator is coupled to a steam turbine and converts mechanical energy of the turbine into electrical energy.
• Alternator used in thermal power plants are of usually 2-pole (or 4-pole) running at 3000 rpm (or 1500 rpm) for 50 Hz operation.

     (k) Exciter:

•  Exciters are nothing but the D.C. Generators their main function is to supply dc power to the     field system (rotor).
•  Exciters are mounted on the same shaft of the alternator.
• The capacity of the exciter is about 0.5% to 3% of the main alternator capacity.
• In some cases a pilot exciter may be used to excite the main exciter itself.

     (l)  Electrostatic precipitator:The use of electrostatic precipitator is to remove fine, dust                         particles from flue gas, It is connected to high D.C. voltage about 30 kV. It is placed between               combustion chamber and chimney.



     (4)  Advantages of steam Power Plants:

           (a) Power stations can be located near the load centers.

           (b) It requires less space as compared to the hydro-electric power station.

           (c) Requires less transmission and distribution.

           (d) Long summer will not affect the power generation like hydro power.



     (5)  Disadvantages of steam Power plants:

            (a) It pollutes the atmosphere due to the production of large amount of smoke and fumes

            (b) It is costlier in running cost as compared to hydro-electric plant.

     (6)  Efficiency of steam Power Station: The overall efficiency of a steam power is quite low                    (about 29%) due to mainly two reasons.

            (a)  Heat loses occur at various stages of the plant.



            Thermal efficiency:The ratio of heat equivalent of mechanical energy transmitted to the                      turbine shaft to the heat of combustion of coal is known as thermal efficiency of steam power              station.Thermal efficiency thermal.



            Overall efficiency:The ratio of heat equivalent of electrical output to the head of combustion              of coal is known as overall efficiency of steam power station.

            Overall efficiency.
